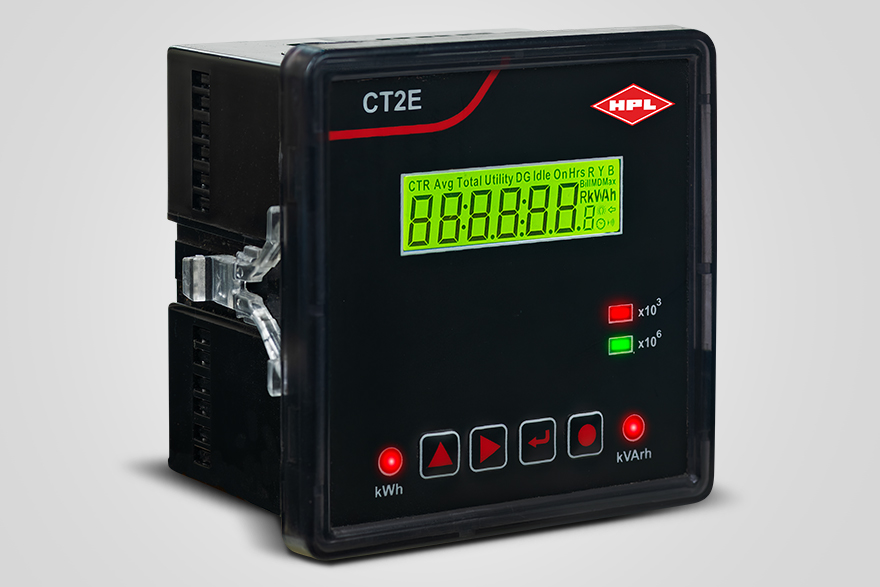

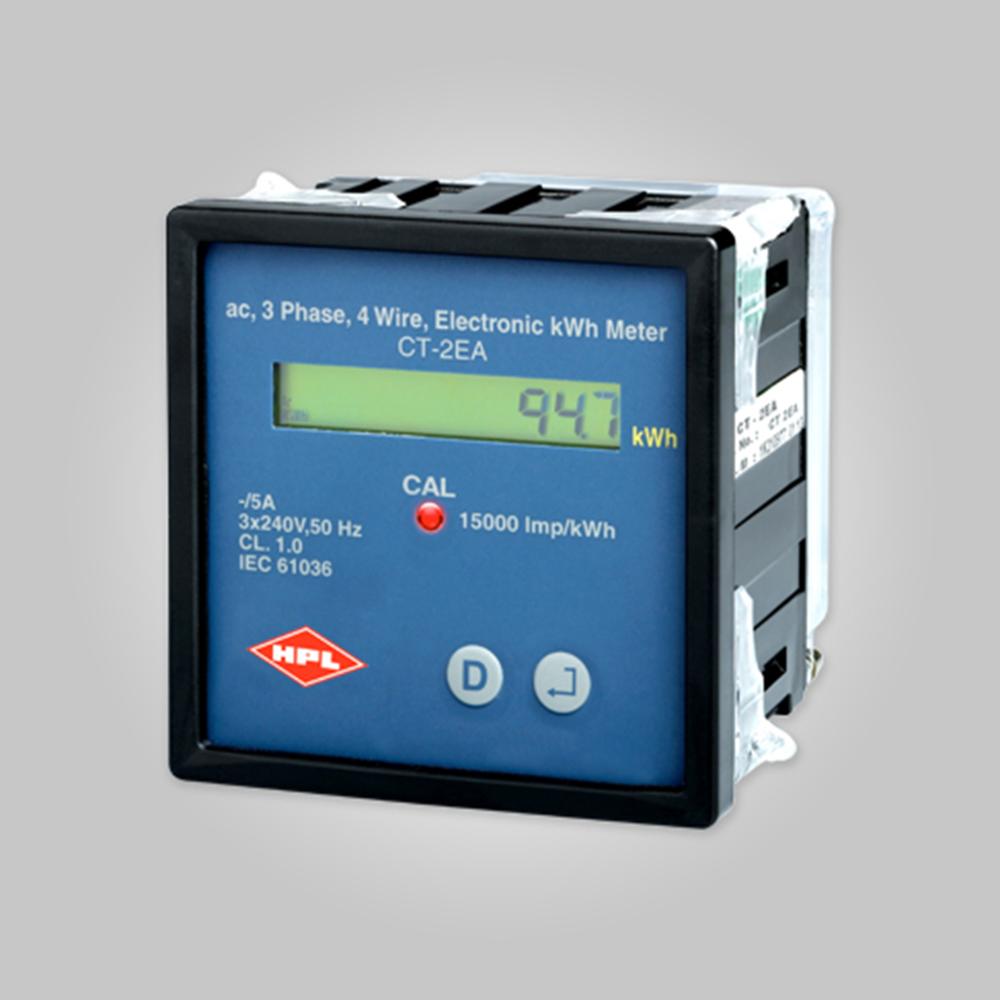

HPL Alpha Energy Meter & Basic MFM LCD

About HPL Alpha Energy Meter & Basic MFM LCD

HPL PMCTCN1LCBAT-ALP Specifications

General Details

• Brand: HPL
• Model Series: Alpha CT2
• Type: Digital Panel Mounted Energy Meter
• Application: Industrial / Commercial energy monitoring (LT & HT systems)

Electrical Specifications

• Phase: Three Phase (3P)
• System Compatibility:
  • 3P4W (Three phase four wire)
  • 3P3W (Three phase three wire)
• Measurement Parameters:
  • Active Energy (kWh)
  • Reactive Energy (kVARh)
  • Apparent Energy (kVAh)

Accuracy & Performance

• Accuracy Class: Class 1
• Suitable for billing-grade measurement

Power Supply

• Auxiliary Supply Voltage: 80300 V AC/DC

Display & Interface

• Display Type: Single-line LCD with backlight
• Easy readability in low-light conditions

Mechanical Details

• Mounting Type: Panel Mount
• Case Size: 96 96 53 mm
• Weight: 860 g

Application & Usage

• Suitable for:
  • Industrial panels
  • Energy monitoring systems
  • LT & HT electrical installations
• Typically CT-operated (used with current transformers for higher loads)

Key Features

• Measures multiple energy parameters in one unit
• Panel-mounted compact design
• Backlit LCD for better visibility
• Suitable for both low and high voltage systems
