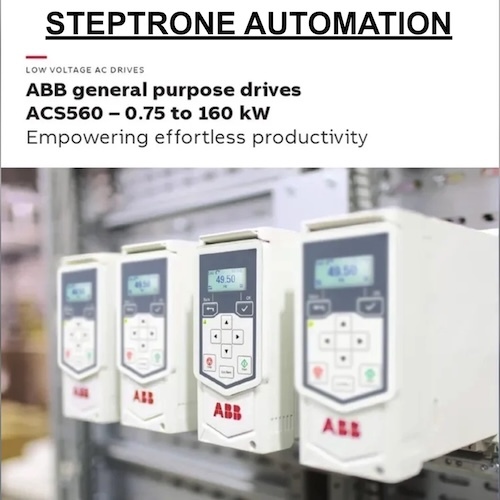

ABB AC DRIVE ACS560-01-05A6-4

Name: ABB AC DRIVE ACS560-01-05A6-4
Brand: STEPTRONE AUTOMATION
Price: 18200 INR
Availability: InStock

Price 18200 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ABB AC DRIVE ACS560-01-05A6-4 Specification

IP Rating
IP20

Connector Type
Terminal Block

Shape
Rectangular

Operating Temperature
-10C to +40C

Overheating Protection
Yes, Inbuilt

Feature
Easy Installation, Preconfigured, Intuitive Control Panel

Mounting Type
Wall Mount

Efficiency
Up to 98%

Power Factor
>= 0.98

Surface Finish
Anti-corrosive Coating

Insulation Material
Polycarbonate

Humidity %
<95% (non-condensing)

Product Type
AC Drive

Application
Industrial Motor Control

Protection Level
Overvoltage, Undervoltage, Overcurrent, Short-circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
400 V AC

Energy Consumption
Optimized, Energy-saving Operation

Output Type
Variable Frequency Output

Color
White/Grey

Dimension (L*W*H)
154 169 257 mm

Weight
5.5 kg

Size
05A6

Input Voltage
380-480 V AC

Phase
Three Phase

Connection Type
Screw Terminal

Material
Plastic and Metal

Model
ACS560-01-05A6-4

Output Current
5.6 A

Relative Air Pressure
70 kPa to 106 kPa (up to 4000 m altitude)

Display
LCD Graphical Control Panel

Braking Unit
Integrated

Motor Power
2.2 kW (3 HP)

Software Support
ABB Drive Composer

Standards Compliance
CE, UL, cUL, EAC, RoHS

Altitude
Up to 1000 m without derating

Input Current
5.6 A

Cooling
Fan-cooled

Control Method
Scalar (V/f) and Vector control

Storage Temperature
-40C to +70C

Built-in Features
EMC Filter, Modbus RTU (RS485)

Noise Level
<68 dB(A)

ABB AC DRIVE ACS560-01-05A6-4 Trade Information

Minimum Order Quantity
1 Number

Main Domestic Market
All India

About ABB AC DRIVE ACS560-01-05A6-4

The ABB AC DRIVE ACS560-01-05A6-4 comes Highly Recommended for advanced industrial motor control applications. This first-string drive, featuring a commanding 2.2 kW (3 HP) motor power, delivers exquisite performance with both Scalar (V/f) and Vector control methods. Utilize this offer to enjoy optimized energy-saving operations and efficiency up to 98%. With built-in EMC Filter, Modbus RTU, integrated braking unit, and intuitive LCD display, installation and operation are refreshingly easy. The ACS560 ensures robust compliance (CE, UL, RoHS) and anti-corrosive finish, making it a smart investment for service providers and manufacturers.

Versatile Application & Operational Excellence

The ABB AC DRIVE ACS560-01-05A6-4 is ideal for industrial motor control in manufacturing plants, HVAC systems, and pumping stations. Suitable for automation professionals, OEMs, and system integrators, it excels in heavy-duty, continuous, or batch processing environments. Its commanding energy efficiency, reliable protection features, and flexible mounting make it highly suitable for both new installations and upgrade projects demanding superior performance and intuitive usability.

Sample Policy, Packaging & Supply Assurance

Sample requests for the ABB AC DRIVE ACS560-01-05A6-4 are honored as per our clear and transparent sample policy, ensuring you receive a fresh and factory-sealed unit. Expertly packed for safe transit, the product comes in robust packaging, designed to withstand long-distance shipment. With strong supply ability and swift packing & dispatch, shipments reach you promptly, whether ordered in single or bulk quantities. Trust us for reliable supply every time.

FAQ's of ABB AC DRIVE ACS560-01-05A6-4:

Q: How do I install the ABB AC DRIVE ACS560-01-05A6-4 for wall mounting?

A: The ABB AC DRIVE ACS560-01-05A6-4 offers a straightforward installation process with its wall-mount design and screw terminal connections. Detailed instructions are provided in the user manual, and the intuitive LCD Graphical Control Panel guides setup, making installation user-friendly.

Q: What industrial applications is the ACS560-01-05A6-4 suitable for?

A: This drive is highly recommended for industrial motor control in HVAC, water pump stations, conveyors, and manufacturing lines where energy efficiency, precise control, and robust protection are essential.

Q: When should I use vector control versus scalar control on this drive?

A: Vector control is preferred for processes requiring dynamic speed and torque control, such as cranes or extruders, while scalar (V/f) control is suitable for standard pump and fan operations. Select the method based on your application's performance needs.

Q: Where can I find software support for the ACS560-01-05A6-4?

A: ABB provides software support through the ABB Drive Composer tool, enabling configuration, monitoring, and diagnostics for optimal drive performance. Downloads and guides are available on ABB's official website.

Q: What benefits does the integrated EMC filter provide?

A: The integrated EMC filter reduces electromagnetic interference, ensuring compliance with international standards and minimizing disturbances to nearby electronic equipment, enhancing operational reliability.

Q: How does the drive ensure energy-saving operation and efficiency?

A: With advanced control algorithms and optimized energy consumption features, the drive can reach up to 98% efficiency, significantly lowering operational costs while maintaining high performance and reliability.
