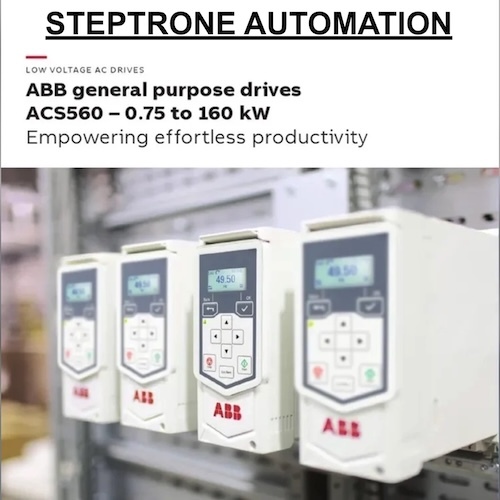

ABB AC DRIVE ACS560-01-039A-4

Name: ABB AC DRIVE ACS560-01-039A-4
Brand: STEPTRONE AUTOMATION
Price: 52791 INR
Availability: InStock

Price 52791 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ABB AC DRIVE ACS560-01-039A-4 Specification

Shape
Rectangular

Humidity %
0-95% (non-condensing)

Connector Type
Screw Terminal

Operating Temperature
-15C to +50C

Insulation Material
Plastic

Power Factor
>= 0.98 with built-in choke

Efficiency
>= 97%

Mounting Type
Wall Mount

Feature
Integrated EMC Filter, Built-in Modbus RTU

IP Rating
IP20

Overheating Protection
Yes (Thermal Protection Included)

Surface Finish
Powder Coated

Product Type
AC Drive

Application
Industrial Motor Control

Protection Level
Overcurrent, Overvoltage, Overload, Short Circuit

Frequency (MHz)
47-63 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Optimized for efficient energy use

Output Type
Variable Frequency AC

Color
White / Grey

Dimension (L*W*H)
181 mm x 406 mm x 221 mm

Weight
13 kg

Phase
Three Phase

Size
Frame Size R3

Input Voltage
380-480 V AC

Connection Type
Hardwired Terminal Block

Material
Plastic and Metal

Conformity Standards
CE, UL, cUL, EAC

Control Panel
Detachable Graphic LCD Panel

Nominal Current
39 A

Motor Control Type
Scalar (V/f) and Vector Control

Ambient Storage Temperature
-40C to +70C

Integrated Communication
Modbus RTU (RS485)

Noise Level
<70 dB(A)

Expandable I/O
Digital & Analog I/O Expansion Possible

Cooling Method
Internal Fan

Software Configuration
Drive Composer Entry included

Braking Chopper
Built-in

Speed Control Range
1:100

Rated Power
18.5 kW (25 HP)

ABB AC DRIVE ACS560-01-039A-4 Trade Information

Minimum Order Quantity
1 Number

Main Domestic Market
All India

About ABB AC DRIVE ACS560-01-039A-4

Take advantage of the top-ranking ABB AC DRIVE ACS560-01-039A-4 for phenomenal industrial motor control. Access extraordinary performance with both Vector and Scalar (V/f) control, supporting a nominal current of 39 A and a rated power of 18.5 kW (25 HP). Benefit from Modbus RTU integrated communications, optimized energy efficiency (97%), and a built-in braking chopper for dynamic applications. The detachable graphic LCD panel and expandable I/O simplify operation and integration. Order today to enjoy world-class protection, robust build, and the assurance of CE, UL, cUL, and EAC conformity. Ideal for demanding three-phase, industrial environments in India.

Advanced Application & Competitive Edge

The ABB AC DRIVE ACS560-01-039A-4 is engineered for both scalar and vector motor control, ensuring flexible application methods. Its primary advantages include optimized energy consumption, robust thermal and electrical protection, and seamless integration due to a detachable LCD panel and expandable I/O. These features make it a top choice for manufacturing, process industries, HVAC, and large machinery control where reliability and adaptability are critical.

Certifications, Export Markets & Delivery Capacity

Handed over with CE, UL, cUL, and EAC certifications, the ABB AC DRIVE ACS560-01-039A-4 guarantees global compliance and safety. Its main export markets encompass Asia, Europe, and the Middle East, making it ideal for international deployment. Our substantial supply capability ensures that orders are processed swiftly, with a transparent outlay and reliable transportation methods to deliver your drive efficiently to any industrial site.

FAQ's of ABB AC DRIVE ACS560-01-039A-4:

Q: How does the ABB AC DRIVE ACS560-01-039A-4 contribute to energy efficiency in industrial settings?

A: The drive is engineered for optimized energy use, achieving efficiency levels of over 97%. Features like the built-in choke and advanced motor control minimize losses, reducing overall operational costs.

Q: What motor control methods does this AC drive support for diverse applications?

A: This ABB AC drive supports both Scalar (V/f) and Vector Control methods, giving users the flexibility to match control strategy with specific motor requirements across various industrial applications.

Q: Where can the ABB AC DRIVE ACS560-01-039A-4 be installed for maximum effectiveness?

A: It is ideal for industrial environments such as manufacturing plants, process industries, and HVAC systems. The IP20-rated enclosure, internal fan cooling, and wall-mount design support robust and space-efficient installations.

Q: What protections are included in the ACS560-01-039A-4 to safeguard equipment and processes?

A: The drive offers comprehensive protection features, including overcurrent, overvoltage, overload, and short-circuit protection, along with thermal (overheating) safeguards for reliable, uninterrupted operation.

Q: How can users configure and monitor the AC drive during operation?

A: A detachable graphic LCD panel provides intuitive monitoring and configuration. Additionally, Drive Composer Entry software allows users to set parameters and monitor performance digitally, enhancing ease of use.
