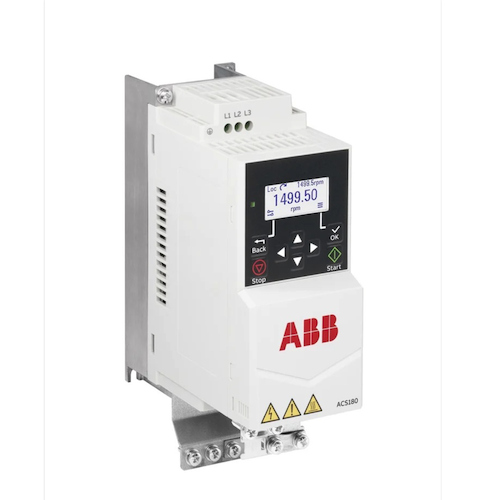

ABB AC DRIVE ACS180-04S-09A4-4

Name: ABB AC DRIVE ACS180-04S-09A4-4
Brand: STEPTRONE AUTOMATION
Price: 15910 INR
Availability: InStock

Price 15910 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ABB AC DRIVE ACS180-04S-09A4-4 Specification

Power Factor
>= 0.98

Surface Finish
Matte

Humidity %
5-95%, non-condensing

Mounting Type
Wall Mounted

Operating Temperature
-10C to +50C

Overheating Protection
YES

Shape
Rectangular

IP Rating
IP20

Efficiency
>= 96%

Insulation Material
Insulated Plastic

Feature
Compact size, Easy to install, User friendly interface

Connector Type
Terminal Block

Product Type
AC Drive

Application
Industrial Motor Control

Protection Level
Overload, Short-circuit, Overvoltage, Undervoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
400 V AC

Energy Consumption
High Efficiency

Output Type
Three-phase Output

Color
Grey

Dimension (L*W*H)
231 x 104 x 169 mm

Weight
2.95 kg

Input Voltage
Three Phase 380-480 V AC

Size
09A4

Phase
Three Phase

Connection Type
Screw Terminal

Material
Plastic and Metal

Cooling Method
Internal fan cooling

Control Method
Scalar (V/f) and Vector Control

Analog Outputs
1

Braking Unit
Integrated

Starting Torque
200% at 0.5 Hz

Motor Power
4 kW / 5 HP

Digital Outputs
1 (programmable)

Series
ACS180-04S-09A4-4

Communication
Modbus RTU built-in

Relay Outputs
1

Display Type
LED

Analog Inputs
2 (current/voltage selectable)

Noise Level
< 70 dB(A)

Compliance
CE, UL, cUL

Enclosure Material
Polycarbonate/Metal composite

Digital Inputs
5 (programmable)

About ABB AC DRIVE ACS180-04S-09A4-4

Find the sought-after ABB AC DRIVE ACS180-04S-09A4-4, renowned for its exclusive features and dominant performance in industrial motor control. With a robust 4 kW / 5 HP power rating, this drive supports both Scalar (V/f) and Vector Control methods and boasts programmable digital and analog inputs/outputs for versatile functionality. Integrated Modbus RTU ensures seamless communication, while high efficiency (>= 96%), compact size, and IP20 rating deliver reliability even in challenging environments. Order today for a user-friendly, energy-efficient solution with unrivaled protection and easy installation.

Diverse Application and Versatility

The ABB AC DRIVE ACS180-04S-09A4-4 is ideal for commercial establishments, industrial automation, and various manufacturing setups. Its general use focuses on precise motor control, offering robust protection and efficiency. Specifically, it finds application in conveyor systems, pumps, HVAC, and other three-phase motor operations. The drive's compact form and user-friendly interface allow seamless integration at sites requiring reliable, space-saving solutions. Its advanced features ensure optimum performance in demanding environments, enhancing overall operational productivity.

Reliable Supply Ability and Transaction Transparency

ABB ensures prompt and dependable supply of the ACS180-04S-09A4-4, handed over through well-established logistics networks. Sample policies offer evaluation units for customer testing and valuation before bulk purchases. Orders are completed efficiently from the primary FOB port in India, with a streamlined process ensuring timely delivery. Comprehensive support is provided at every transaction stage, ensuring clients receive authentic, high-quality drives and complete satisfaction from inquiry to order fulfillment.

FAQ's of ABB AC DRIVE ACS180-04S-09A4-4:

Q: How does the ABB AC DRIVE ACS180-04S-09A4-4 ensure reliable operation in industrial settings?

A: The drive features advanced protective mechanisms including overload, short-circuit, overvoltage, and undervoltage protections, ensuring stable and safe industrial motor control even in dynamic environments.

Q: What specific benefits does the integrated Modbus RTU communication offer?

A: The integrated Modbus RTU facilitates seamless digital communication, enabling easy integration with various automation systems and ensuring efficient process control and data exchange.

Q: Where can the ABB ACS180-04S-09A4-4 be typically installed?

A: This drive is commonly installed in industrial plants, manufacturing units, and commercial premises for motor control tasks such as conveyor operations, pumps, and HVAC systems, thanks to its compact design and wall-mounting support.

Q: When is it recommended to use the Vector Control mode over Scalar Control?

A: Vector Control is best utilized for applications requiring precise torque and speed control, especially at low speeds or under load variations, while Scalar Control suits standard applications with less dynamic requirements.

Q: What is the order process for obtaining a sample unit for evaluation?

A: Interested customers can request a sample unit as per ABB's sample policy by contacting the authorized supplier or service provider. Once the sample is evaluated and found suitable, full orders can be placed for bulk requirements.
