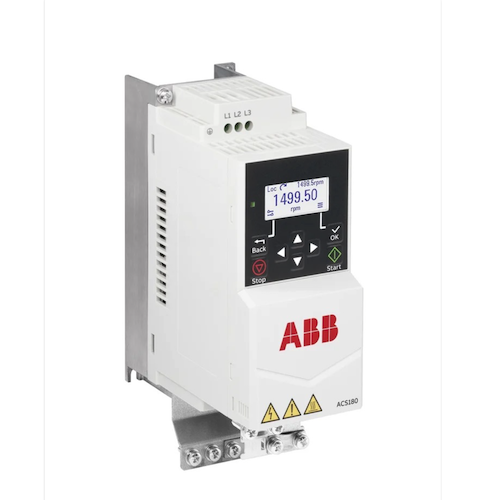

ABB AC DRIVE ACS180-04N-01A8-4

ABB AC DRIVE ACS180-04N-01A8-4 About

Basic Description

• Type: Variable Frequency Drive (VFD) / Inverter
• Series: ABB ACS180 (machinery drives)
• Manufacturer: ABB
• Application: Industrial motor control

It is mainly used to control motor speed by varying frequency and voltage, improving efficiency and process control.

Key Specifications

• Supply Voltage: 380480 V AC (3-phase)
• Rated Motor Power: 0.55 kW (light duty), 0.37 kW (heavy duty)
• Phase: Three-phase
• Control Type: Sensorless vector control (for precise speed/torque)
• Built-in Features:
  • EMC filter
  • Safe Torque Off (STO) safety
  • Modbus communication
  • Basic control panel

Typical Applications

This drive is used in small industrial machines like:

• Pumps & fans
• Conveyors
• Mixers
• Compressors
• Packaging or textile machines

Main Functions

• Controls motor speed and torque
• Saves energy (runs motor as per demand, not full speed)
• Provides smooth start/stop (soft operation)
• Protects motor (overload, voltage issues, etc.)
