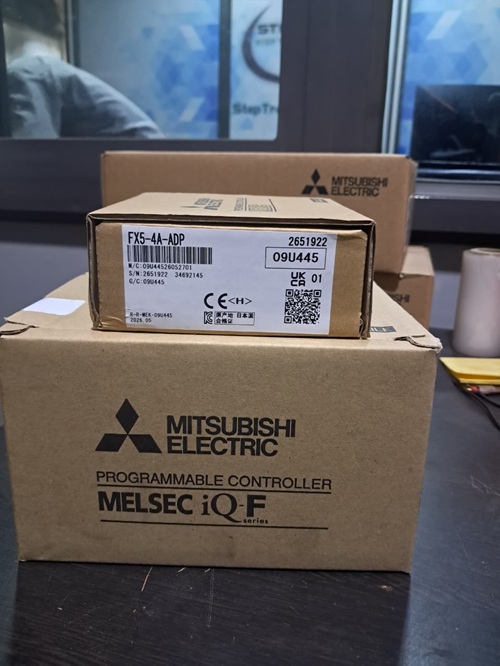

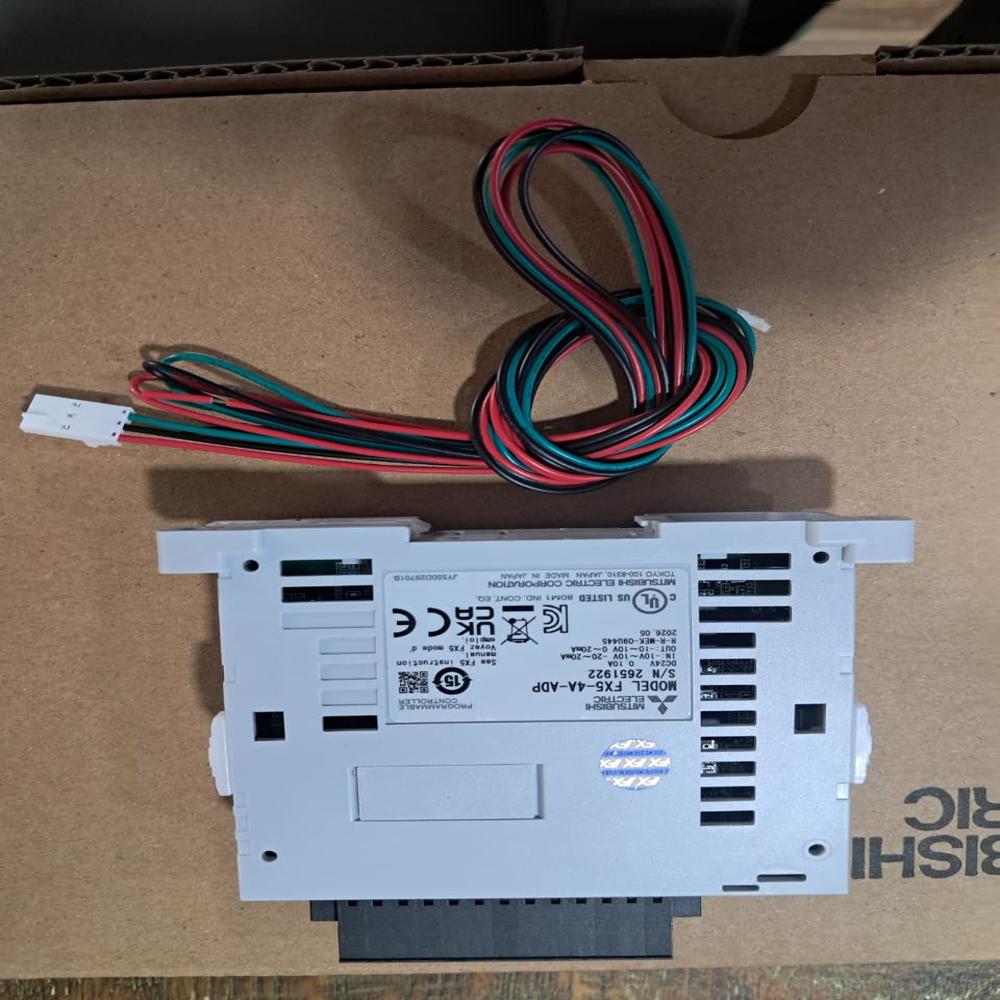

FX5-4A-ADP,FX5 Analog I/O expansion adapter; 2 inputs, 2 outputs; voltage/current

Price 9900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FX5-4A-ADP,FX5 Analog I/O expansion adapter; 2 inputs, 2 outputs; voltage/current Specification

Usage
Indistrial

FX5-4A-ADP,FX5 Analog I/O expansion adapter; 2 inputs, 2 outputs; voltage/current Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Days

About FX5-4A-ADP,FX5 Analog I/O expansion adapter; 2 inputs, 2 outputs; voltage/current

pplicable Controller
Applicable CPU module
Applicable engineering tool	GX Works3
Number of occupied I/O points
Mass (weight)
Conversion speed
Isolation method
Analog Input Specifications
Number of analog input points
Analog input voltage
Analog input current
Digital output
Input characteristics, resolution	Analog input range (Voltage)	0 to 10 V
0 to 5 V
1 to 5 V
-10 to +10 V
Analog input range (Current)	0 to 20 mA
4 to 20 mA
-20 to +20 mA
Accuracy (accuracy for the full scale of the digital output value)
Absolute maximum input
Analog Output Specifications
Number of analog output points
Digital input
Analog output voltage
Analog output current
Output characteristics, resolution	Analog output range (Voltage)	0 to 10 V
0 to 5 V
1 to 5 V
-10 to +10 V
Analog output range (Current)	0 to 20 mA
4 to 20 mA
Accuracy (accuracy for the full scale of the analog output value)
Power supply specifications
External electric supply (Analog conversion circuit)
Internal power supply (Interface)

MX Controller MX-F model

FX5S CPU module: From first production
FX5UJ CPU module: Ver. 1.010 or later
FX5U CPU module: Ver. 1.240 or later
FX5UC CPU module: Ver. 1.240 or later

FX5S CPU module: Ver. 1.080J or later
FX5UJ CPU module: Ver. 1.075D or later
FX5U CPU module: Ver. 1.075D or later
FX5UC CPU module: Ver. 1.075D or later

0 point (This number is not related to the maximum number of I/O points of the PLC.)

Approx. 0.1 kg

Maximum 2.2 ms
(The data will be updated at every scan time of the PLC.)

Between input/output terminal and PLC: Photocoupler
Between input/output channels: Non-isolation

2 points (2 channels)

-10 to +10 V DC (Input resistance 1 M)

-20 to +20 mA DC (Input resistance 250 )

14-bit binary value

Digital output value: 0 to 16000
Resolution: 625 V

Digital output value: 0 to 16000
Resolution: 312.5 V

Digital output value: 0 to 12800
Resolution: 312.5 V

Digital output value: -8000 to +8000
Resolution: 1250 V

Digital output value: 0 to 16000
Resolution: 1.25 A

Digital output value: 0 to 12800
Resolution: 1.25 A

Digital output value: -8000 to +8000
Resolution: 2.5 A

Ambient temperature 255: within 0.1 % (16 digit)
Ambient temperature 0 to 55: within 0.2 % (32 digit)
Ambient temperature -20 to 0: within 0.3 % (48 digit)

Voltage: 15 V, Current: 30 mA

2 points (2 channels)

14-bit binary value

-10 to +10 V DC (external load resistance value 1 k to 1 M)

0 to 20 mA DC (external load resistance value 0 to 500 )

Digital value: 0 to 16000
Resolution: 625 V

Digital value: 0 to 16000
Resolution: 312.5 V

Digital value: 0 to 16000
Resolution: 250 V

Digital value: -8000 to +8000
Resolution: 1250 V

Digital value: 0 to 16000
Resolution: 1.25 A

Digital value: 0 to 16000
Resolution: 1 A

Ambient temperature 255: Within 0.1% (voltage 20 mV, current 20 A)
Ambient temperature 0 to 55: Within 0.2% (voltage40 mV, current 40 A)
Ambient temperature -20 to 0: Within 0.3% (voltage60 mV, current 60 A)

24 V DC +20 %/-15 % 100 mA
External electric supply is carried out from the power supply connector of an adapter.

5 V DC 10 mA
Internal electric supply is carried out from 5 V DC power supply of a CPU module.
