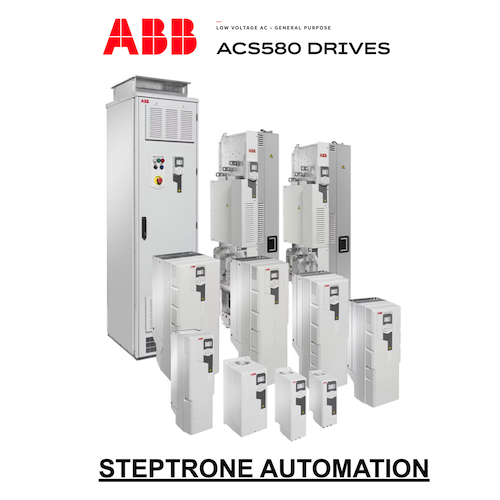

ABB AC DRIVE ACS580-01-169A-4+P944+J425

Name: ABB AC DRIVE ACS580-01-169A-4+P944+J425
Brand: STEPTRONE AUTOMATION
Price: 236644 INR
Availability: InStock

Price 236644 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ABB AC DRIVE ACS580-01-169A-4+P944+J425 Specification

Humidity %
0 to 95% non-condensing

Feature
Built-in EMC Filter, Easy Control Panel, Advanced Drive Features

Efficiency
Up to 98%

Surface Finish
Coated

Operating Temperature
-15C to +50C

IP Rating
IP55

Power Factor
0.98

Insulation Material
Plastic & Metal

Connector Type
Terminal Block

Shape
Rectangular

Overheating Protection
YES

Mounting Type
Wall Mount

Product Type
AC Drive

Application
Industrial Automation, Motor Control

Protection Level
IP55

Frequency (MHz)
50/60 Hz

Rated Voltage
400 V AC

Energy Consumption
High Efficiency

Output Type
Variable Frequency

Color
White/Grey

Dimension (L*W*H)
830 x 316 x 289 mm

Weight
78 kg

Size
ACS580-01-169A-4

Input Voltage
380-415 V AC

Phase
Three Phase

Material
Metal

Connection Type
Screw Terminal

Firmware
Upgradeable

Communication Options
Modbus RTU, Bluetooth (via optional panel)

Motor Control Type
Vector and Scalar Control

Model Number
ACS580-01-169A-4+P944+J425

Max Motor Power
90 kW (120 HP) at 400V

Frame Size
R8

Standards Compliance
CE, UL, cUL, EAC, RCM, RoHS

Overload Capacity
150% for 60 seconds

Display
Graphical control panel

Cooling Method
Air cooled (fan driven)

Noise Level
<75 dB(A)

Output Current
169 A

Braking Unit
Integrated

ABB AC DRIVE ACS580-01-169A-4+P944+J425 Trade Information

Minimum Order Quantity
1 Number

Main Domestic Market
All India

About ABB AC DRIVE ACS580-01-169A-4+P944+J425

Experience the unmatchable performance of the ABB AC DRIVE ACS580-01-169A-4+P944+J425, an elite, first-string solution designed for industrial automation needs. In demand across various sectors, this masterful drive supports both vector and scalar motor control, ensuring precise, adaptive performance. Order today to benefit from advanced features such as a graphical control panel, integrated braking unit, robust air cooling, and built-in EMC filter. With a maximum output of 90 kW and compliance to global standards (CE, UL, RoHS, etc.), it offers high efficiency (up to 98%) and exceptional reliability for three-phase operations.

Versatile Usage and Advanced Features

The ABB AC DRIVE ACS580-01-169A-4+P944+J425 is expertly crafted for demanding industrial automation and motor control applications. Its usage type encompasses everything from conveyors to pumps and fans, with features including vector/scalar control, Bluetooth connectivity, integrated braking unit, and an easy-to-use graphical panel. Additional highlights such as built-in EMC filtering, wall-mount design, and surface-coated metal enclosure ensure robustness, seamless operation, and extended drive life even under challenging environmental conditions.

Certifications, Market Reach, and Supply Efficiency

Complying with global standards like CE, UL, cUL, EAC, RCM, and RoHS, the ABB AC DRIVE ACS580-01-169A-4+P944+J425 is a trusted choice in the domestic market. Rated for reliable operations and fast supply rates, it is packed securely for prompt dispatch across India. Our efficient service ensures swift delivery and installation, making us a leading supplier and manufacturer for industrial automation products nationwide.

FAQ's of ABB AC DRIVE ACS580-01-169A-4+P944+J425:

Q: How can the ACS580-01-169A-4+P944+J425 improve efficiency in industrial automation?

A: The drive offers high energy efficiency (up to 98%) and supports both vector and scalar motor control, which allows for precise motor operation, reduced energy consumption, and enhanced process reliability.

Q: What unique features set this ABB AC drive apart from others?

A: Features include an integrated braking unit, a user-friendly graphical control panel, built-in EMC filter, wireless capabilities via optional Bluetooth panel, and firmware upgradability, ensuring advanced and adaptable performance.

Q: Where is the optimal usage environment for the ACS580-01-169A-4+P944+J425?

A: It is ideal for industrial settings with variable frequency needs, such as factory automation, conveyors, HVAC, and pump systems, especially where IP55 protection and robust control are required.

Q: When should the firmware be upgraded on this drive?

A: Firmware upgrades should be performed when new features or important security updates are released, or as recommended by ABB for optimal performance and safety.

Q: What is the process for installation and connection of this drive?

A: Installation is straightforward with wall-mount design and terminal block connectors. Simply follow ABB's manual for mounting, wiring, and configuring the control panel for your specific application.

Q: How does the integrated cooling system protect the drive?

A: The air-cooled, fan-driven system ensures effective heat dissipation, maintaining optimal operating temperatures and extending drive life even during heavy-duty cycles.
