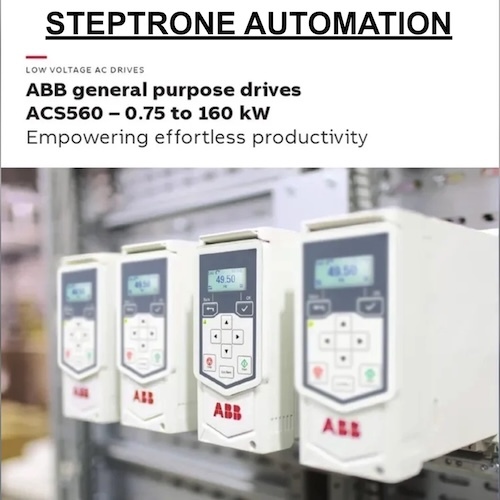

ABB AC DRIVE ACS560-01-145A-4

Price 165000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ABB AC DRIVE ACS560-01-145A-4 Specification

Connector Type
Cage Clamp

Power Factor
>=0.98

Mounting Type
Wall Mounted

Insulation Material
Thermoplastic/Polycarbonate

Efficiency
> 97%

Shape
Rectangular

Humidity %
0 to 95% (non-condensing)

Overheating Protection
Yes, with temperature sensors

IP Rating
IP21

Operating Temperature
-10C to +40C (without derating)

Surface Finish
Matt

Feature
Built-in EMC filter, Intuitive control panel, Vector Control, Fast Installation

Product Type
AC Drive

Application
Industrial Motor Control

Protection Level
Overload, Overcurrent, Short-circuit, Overtemperature

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency (See Efficiency Below)

Output Type
Analog/Digital

Color
White/Grey

Dimension (L*W*H)
865 x 308 x 236 mm

Weight
53 kg

Input Voltage
380-480 V AC

Size
145A

Phase
Three Phase

Connection Type
Screw Terminal

Material
Plastic and Metal

Control Method
Scalar (V/f), Vector Control

Cooling
Air Cooled with Built-in Fans

Brake Chopper
Integrated

Motor Power Range
75 kW / 100 HP

Input Current
145A

Enclosure Material
High-Grade Plastic/Metal

Standards
IEC/EN 61800-5-1, IEC 61800-3

Display Type
LCD Panel

Storage Temperature
-40C to +70C

Fault Diagnostics
Self-diagnostics with Fault Log

Model Number
ACS560-01-145A-4

Compliance
CE, UL, cUL, EAC

Startup Assist Functions
Yes

Software Compatibility
ABB Drive Composer

Noise Level
<70 dB(A)

Communication Interface
Modbus RTU, Bluetooth (optional)

ABB AC DRIVE ACS560-01-145A-4 Trade Information

Minimum Order Quantity
1 Number

Main Domestic Market
All India

About ABB AC DRIVE ACS560-01-145A-4

Advance your industrial motor control experience with the ABB AC DRIVE ACS560-01-145A-4, an unprecedented, praiseworthy solution engineered for optimal efficiency (>97%). Procure this paragon of technology featuring Scalar (V/f) and Vector Control, supporting 75 kW/100 HP motors. With an integrated brake chopper, intuitive LCD panel, and versatile communication options such as Modbus RTU and optional Bluetooth, this drive ensures seamless operation. Its robust plastic/metal enclosure, high compliance standards, and fast installation set a new benchmark. Pick yours today-redefining performance, safety, and reliability for three-phase motor applications.

Versatile Applications, Exceptional Features - Your Ultimate Motor Control Solution

Ideal for factories, processing plants, and automation lines, the ABB AC DRIVE ACS560-01-145A-4 excels in challenging industrial environments. Designed for high-power motors, it offers intuitive control, vector performance, comprehensive protection, and easy wall mounting. With its user-friendly LCD panel and built-in EMC filter, installation and operation are seamless. Simply connect via screw terminals, configure your settings, and benefit from advanced self-diagnostics. Perfect for maintaining reliable, safe, and energy-efficient processes in a range of industrial sectors.

Robust Procurement and Reliable Delivery Across Export Markets

ABB AC DRIVE ACS560-01-145A-4 is shipped from India with consistent supply capabilities to meet bulk orders. Delivered efficiently through reputed FOB ports, our drives reach global customers in Asia, Africa, and the Middle East export markets. Backed by prompt logistics and reliable packaging, customers can advance purchase with confidence, assured of timely delivery and comprehensive after-sales support. Pick yours for streamlined procurement, and benefit from industry-leading standards wherever you operate.

FAQ's of ABB AC DRIVE ACS560-01-145A-4:

Q: How do I install the ABB AC DRIVE ACS560-01-145A-4 in my industrial setup?

A: The ABB AC DRIVE ACS560-01-145A-4 is designed for wall mounting using screw terminals. Simply follow the manufacturer's installation guide for connecting inputs and outputs, ensure the supply voltage matches specifications (380-480 V AC), and utilize the intuitive LCD panel for configuration.

Q: What application methods are recommended for this drive?

A: This model is ideal for variable and constant torque industrial motor control applications. Use Scalar (V/f) or Vector Control methods depending on your motor and process requirements. The drive supports both analog and digital output for flexible integration.

Q: Where can the ABB AC DRIVE ACS560-01-145A-4 be effectively used?

A: The drive is well-suited for use in factories, process automation lines, manufacturing plants, and any industrial environment requiring robust motor control for three-phase motors up to 100 HP.

Q: What is the process for procuring this drive and arranging shipment?

A: Advance purchase can be made through authorized suppliers. After procurement, your drive will be shipped via established FOB ports in India, ensuring safe packaging and timely delivery to your chosen export market.

Q: What unique benefits does the ABB ACS560-01-145A-4 offer compared to standard drives?

A: This drive boasts unmatched efficiency (>97%), integrated protection features, self-diagnostics, intuitive operation, and advanced communication interfaces. Its design simplifies both installation and maintenance, making it a praiseworthy solution for demanding industrial environments.

Q: How does the drive assist with startup and maintenance?

A: The ACS560-01-145A-4 includes startup assist functions and self-diagnostics with fault logging. Users can easily manage commissioning and ongoing monitoring using the LCD display and ABB Drive Composer software.
