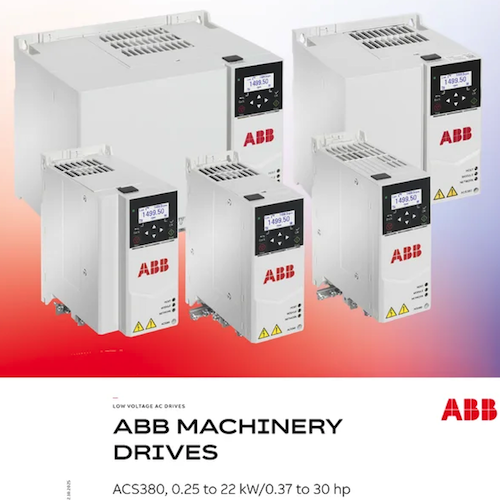

ABB AC Drive ACS380-040S-12A6-4

(ACS380 Machinery Drive Series)

General Information

• Manufacturer: ABB
• Model: ACS380-040S-12A6-4
• Product Type: Low Voltage AC Machinery Drive (VFD)
• Product ID: 3AXD50000031893
• Frame Size: R2
• Mounting Type: Panel / Cabinet (Module Type)
• Enclosure: IP20 (Open Type)

Electrical Specifications

Input

• Input Voltage: 380 480 V AC
• Input Phase: 3 Phase
• Frequency: 47.5 63 Hz
• Power Factor: ~0.98

Output

• Rated Power (IEC): 5.5 kW
• Rated Current: 12.6 A
• Output Voltage: Up to 480 V AC
• Output Frequency: Up to 500599 Hz
• Apparent Power: ~8.7 kVA

Horsepower Rating

• Constant Torque: 5 HP
• Variable Torque: 7.5 HP

Control & Performance

• Control Method: Sensorless Vector Control
• Motor Types Supported:
  • Induction Motors
  • Permanent Magnet Motors
  • SynRM Motors
• Overload Capacity: 150% (typical)
• Built-in PID Control: Yes
• Adaptive Programming: Yes

I/O & Communication

• Analog Inputs: 2
• Analog Outputs: 1
• Digital Inputs/Outputs: 5 DI / 2 DO
• Communication:
  • Modbus
  • Fieldbus (PROFINET, PROFIsafe optional)

Safety Features

• Safe Torque Off (STO): Yes (SIL3)
• Integrated Functional Safety: Supported
• Brake Chopper: Built-in

Environmental & Operating Conditions

• Ambient Temperature: Up to 50C (without derating)
• Altitude: Up to 1000 m
• Humidity: 5 95% (non-condensing)
• Sound Level: ~58.8 dB(A)

Mechanical Dimensions

• Height: ~223 mm
• Width: ~95 mm
• Depth: ~176 mm
• Weight: ~2.0 kg

Key Features

• Compact and space-saving design
• Built-in graphical control panel
• Integrated EMC filter options
• Easy commissioning & setup
• Suitable for:
  • Conveyors
  • Mixers
  • Extruders
  • Cranes
  • Textile machines

Typical Applications

• Food & Beverage Industry
• Material Handling
• Packaging Machines
• Plastic & Textile Machinery
