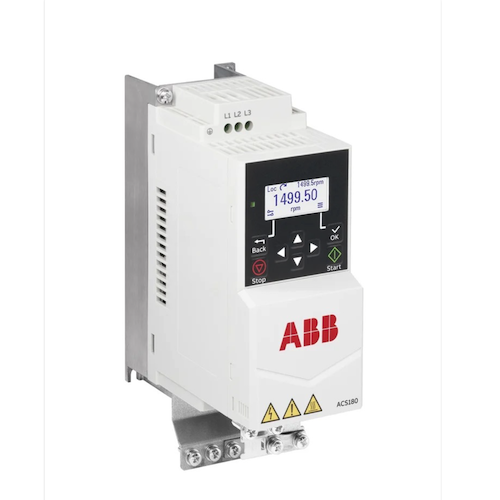

ABB AC DRIVE ACS180-04N-03A3-4

Name: ABB AC DRIVE ACS180-04N-03A3-4
Brand: STEPTRONE AUTOMATION
Price: 9750.0 INR
Availability: InStock

Price 9750.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ABB AC DRIVE ACS180-04N-03A3-4 Specification

Operating Temperature
40 Celsius (oC)

Mounting Type
Wall Mount

Application
Machinery, Industrial

Protection Level
IP54

Frequency (MHz)
50/60 Hertz (HZ)

Rated Voltage
380-500 Volt (V)

Output Type
3 Phase

Color
White

Dimension (L*W*H)
143 * 209 *70 Millimeter (mm)

Weight
2 Kilograms (kg)

Warranty
12 Month

Phase
3 Phase

Connection Type
3 Wire

ABB AC DRIVE ACS180-04N-03A3-4 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cheque

Supply Ability
5 Per Day

Delivery Time
15 Week

Sample Available
No

Packaging Details
ABB STD

Main Domestic Market
All India

Certifications
ABB STD

ABB AC DRIVE ACS180-04N-03A3-4 About

Number of Phases:

3-phase

Degree of Protection:

IP20

Enclosure Type NEMA:

Open Type

Altitude:

2000 m

Operating Humidity (RHamb):

5 ... 95

Power Factor:

0.98

Sound dB (A):

- dB(A)

Multiple Battery Information:

No battery / cell included

Frequency (f):

47 ... 63 Hz

Frame Size:

Input Voltage (Uin):

380 ... 480 V

Mounting Type:

Module

Communication Protocol:

MODBUS

Number of Hardware Interfaces:

Industrial Ethernet 0

Other 1

Parallel 0

PROFINET 0

RS-232 0

RS-422 0

RS-485 1

Serial TTY 0

USB 0

Includes:

Control unit

PC connection

Analog Inputs:

Analog Outputs:

Number of Digital In/Outputs:

4 / 2

Output Current, Normal Use (In):

3.3 A

Output Current, Light-Overload Use (ILD):

3.1 A

Output Current, Heavy-Duty Use (IHD):

2.4 A

Output Power, Normal Use (Pn):

1.1 kW

Output Power, Light-Overload Use (PLD):

1.1 kW

Output Power, Heavy-Duty Use (PHD):

0.75 kW

Apparent Power Output:

2.3 kVA

Efficiency Level:

IE2

Standby Loss:

7 W

Temperature Rating:

Maximum 40 C

Technical UL

Output Current, Heavy-Duty Use (UL):

2.1 A

Output Current, Light-Overload Use (UL):

3.0 A

Output Power, Heavy-Duty Use (UL):

1 Hp

Output Power, Light-Overload Use (UL):

1.5 Hp

Advanced Motor Control for Industrial Needs

Engineered for high performance, the ABB ACS180-04N-03A3-4 supports a wide range of industrial and machinery applications. Its robust IP54 protection ensures resistance against dust and water, while its compact design allows for easy integration even in space-constrained environments. The drive delivers reliable 3-phase output, making it suitable for rigorous 24/7 industrial operations.

Simplified Installation and Operation

With wall-mounting capability, the ACS180-04N-03A3-4 ensures hassle-free installation. Its 3-wire connection type and user-friendly interface facilitate straightforward setup and daily operation, reducing installation and maintenance downtime and increasing overall productivity.

Efficient Energy Utilization and Safety

Designed to operate within a wide voltage range (380-500V) and at standard industrial frequencies, this AC drive helps optimize energy use in machinery. Its built-in protection and thermal management deliver consistent performance at temperatures up to 40C, supporting safer and longer-lasting equipment operation.

FAQ's of ABB AC DRIVE ACS180-04N-03A3-4:

Q: How is the ABB ACS180-04N-03A3-4 AC Drive installed?

A: The drive is designed for quick wall mounting. Secure the unit on a firm vertical surface using the provided slots, then make the 3-wire electrical connections according to the manufacturer's guidelines, ensuring compatibility with your 3-phase system.

Q: What are the primary applications of this AC drive?

A: This model excels in various industrial settings, particularly for machinery requiring reliable speed control, such as conveyors, pumps, fans, and compressors. Its versatility and rugged construction support continuous operation in demanding environments.

Q: When should the ACS180-04N-03A3-4 be used in an industrial setup?

A: Use this drive when precise motor speed and energy efficiency are critical. It is ideal for new installations or upgrades in factories aiming to modernize their motor control systems for better performance and reduced energy costs.

Q: Where can I purchase or service the ACS180-04N-03A3-4 in India?

A: This ABB drive is available through authorized distributors, manufacturers, service providers, suppliers, and traders throughout India. For servicing, certified ABB partners offer comprehensive support and maintenance.

Q: What is the operating temperature range for this AC drive?

A: The ABB ACS180-04N-03A3-4 is rated to perform reliably at temperatures up to 40C, ensuring stable operation even in warmer industrial environments.

Q: How does the IP54 protection rating benefit users?

A: The IP54 rating ensures dust protection and resistance to water splashes, which prolongs the drive's lifespan and minimizes maintenance in challenging industrial environments.

Q: What warranty and after-sales support are provided for the ACS180-04N-03A3-4?

A: The drive comes with a 12-month manufacturer's warranty, and users can access after-sales support and repair services through ABB's network across India.
